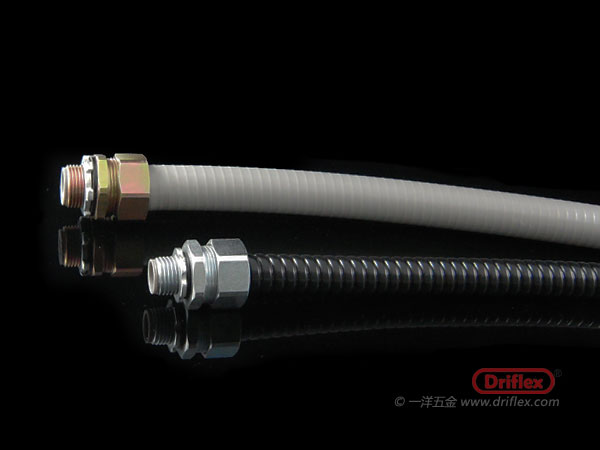

Liquid-tight Flexible Metallic Conduit

Model: LT-B or G
Description:

Features:

  • Galvanized steel, square-locked core with cord packing from 3/8" to 1-1/4", interlocked core from 1-1/2" to 4" to give additional strengh to prevent unravelling
  • Smooth wipe clean PVC jacketed
  • Liquid-tight IP66/IP67
  • Good flexibility
  • High mechanical strength
  • Flame retardent
  • UV protection
  • moisture proof
  • Resistance to most of chemicals, such as oil, acids and vapours, etc.
  • Good Absorption of motion and vibration
  • Cover does not winkle when bent
  • Temperature range from -30oC to +100oC
  • PVC colour black (standard), grey or orange (made to order)
  • Nickel plated brass fittings
  • Galvanized malleable iron fittings
  • Stainless steel fittings

Applications:

  • General indutrial installations and wire protection
  • Outdoor installation
  • Machine tools
  • Installations where liquid-tight is a requirement

Special Applications:

According to customer's samples and specifications, we can manufacture the LT type flexible conduit to suit special applications, such as wider temperature range, specific chemical resistance, etc.

Specifications:

Part No Nominal Size
ISO (mm)		 Nominal Size
US (inches)		 I.D. (mm) O.D. (mm) Min. Bend
Radius (mm)		 Length
(M/coil)
LT-10B/10G 16 3/8" 12.3 - 12.8 17.5 - 18.0  60  30
LT-11B/11G 20 1/2" 15.8 - 16.3 20.8 - 21.3 80 30
LT-12B/12G 25 3/4" 20.7 - 21.2 26.2 - 26.7 100 30
LT-13B/13G 32 1" 26.2 - 26.8 32.7 - 33.4 150 30
LT-14B/14G 40 1-1/4" 34.8 - 35.4 41.4 - 42.2 180 20
LT-15B/14G 50 1-1/2" 40.1 - 40.6 47.4 - 48.3 200 20
LT-16B/16G 63 2" 51.3 - 51.9 59.4 - 60.3 250 15
LT-17B/17G 75 2-1/2" 63.0 - 63.6 72.1 - 73.0 300 10
LT-18B/18G 90 3" 78.0 - 78.7 87.9 - 88.9 450 10
LT-19B/19G 100 4" 101.6 - 102.6 113.2 - 114.3 600 5

Suitable fittings:

  • LT type of fittings - IP66/67 (liquid-tight)
